Sump Pump Installation in Nashville & Middle Tennessee
Protect your basement and crawl space from catastrophic water intrusion with a commercial-grade sump pump system. We install high-output cast-iron submersible pumps, intelligent auxiliary battery backup systems, and airtight sealed basins to ensure rapid, dependable water evacuation even during severe thunderstorm power outages.
High Output
Pumping Volume
Commercial cast-iron submersible pumps move thousands of gallons per hour
Solid Cast Iron
Pump Housing
Durable metal motor housing dissipates heat rapidly for continuous operation
Smart Battery
Outage Defense
Auxiliary DC backup pump engages automatically during municipal power failures
Airtight Lid
Basin Sealing
Silicone-gasketed clear inspection cover blocks damp odors and subterranean gases
Why Battery Backup Redundancy Is Essential in Middle Tennessee
Nashville and Central Tennessee experience some of the nation most intense thunderstorm activity. Understanding the mechanical dynamics of storm flooding reveals why single builder-grade pumps fail:
Peak Rainfall Synchronized with Power Outages
Summer cloudbursts and spring frontal storms in Middle Tennessee routinely drop 2 to 4 inches of rain within a few hours. High winds often bring down tree branches and neighborhood utility lines, causing immediate electrical blackouts.
Without an auxiliary DC battery backup system, a standard sump pump is completely paralyzed. While water rushes into the pit from sub-slab French drains at hundreds of gallons per hour, the unpowered pump sits idle, leading to flooded basements within minutes.
Mechanical Redundancy Against Primary Float Failure
Mechanical switches and pump impellers operate under harsh conditions with heavy sediment and mineral deposits. In a single-pump configuration, a single jammed float switch means total system failure.
Our dual-pump systems feature completely independent float switches set at staggered heights. If the primary pump ever experiences a mechanical fault, the water rises just two inches higher to trigger the secondary pump, sound an audible warning, and keep your basement dry.

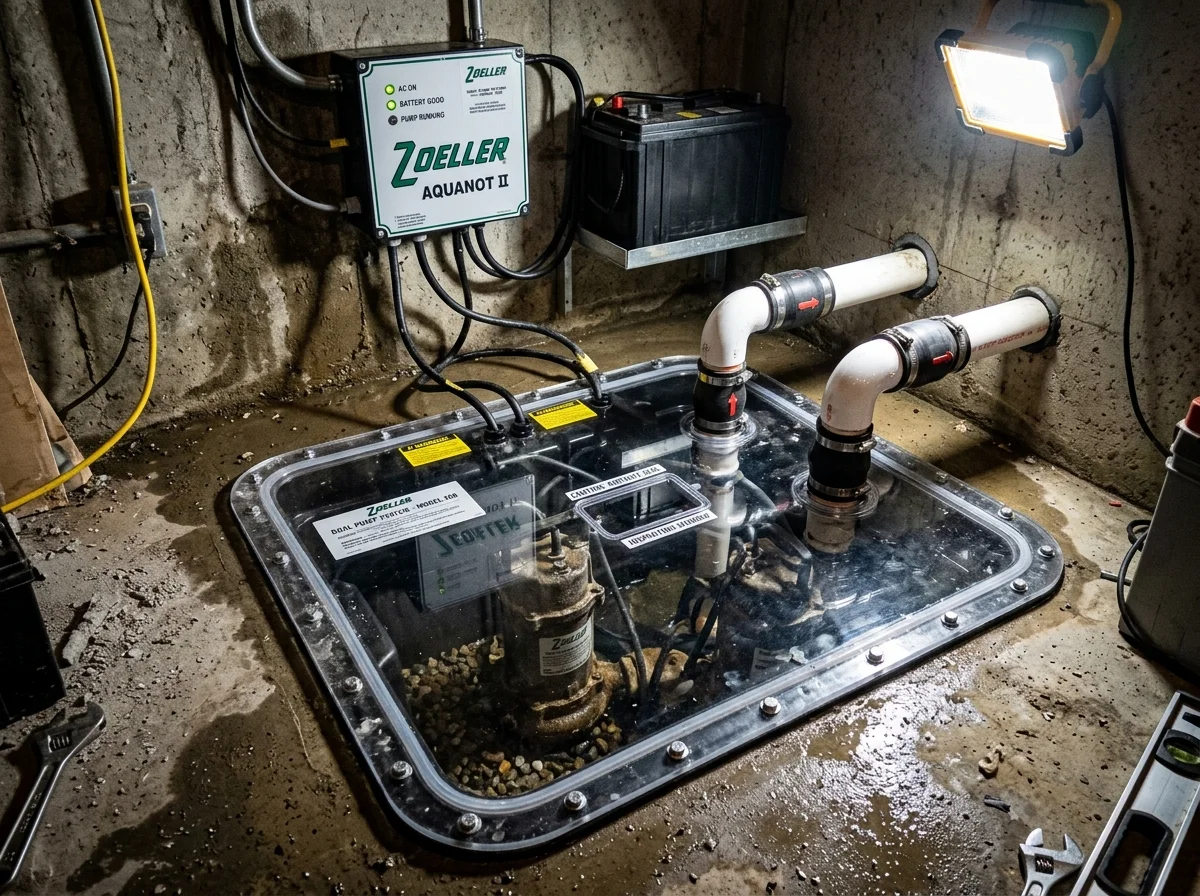

Components of a Commercial Sump Pump Installation
Our pumping stations are engineered with industrial-grade mechanical and electrical components designed to handle extreme stormwater volumes:
Commercial Cast-Iron Primary Submersible Pump
Unlike lightweight plastic hardware store pumps that overheat and fail during prolonged storms, our primary pumps feature solid cast-iron motor housings and non-clogging vortex impellers. The heavy metal construction dissipates heat efficiently, ensuring continuous duty during severe rainfall.
Auxiliary Smart Battery Backup System
Middle Tennessee thunderstorms frequently knock out municipal power precisely when groundwater inflow is highest. Our auxiliary DC backup pump operates on a dedicated deep-cycle battery with an intelligent microprocessor charger, maintaining continuous pumping for days until grid power is restored.
Airtight Clear Inspection Basin Lid
The heavy-duty structural polyethylene basin is sealed with a clear, bolted polycarbonate inspection cover and elastomeric gasket. This allows visual pump audits while completely containing damp subterranean odors, moisture evaporation, and radon gas.
Dual Silent Inline Check Valves
Each pump discharge line is equipped with a heavy-duty spring-loaded silent check valve. These precision valves eliminate the loud water-hammer clunk common in older systems and prevent discharged water from falling back into the basin when the motor turns off.
Ice Guard Freeze-Relief Discharge Fitting
Discharge piping exiting through the foundation wall includes an exterior anti-freeze escape port. If exterior buried lines freeze during winter ice storms or become obstructed, water vents safely onto the lawn rather than backing up into your basement.
Dedicated Buried PVC Discharge Run
Water is evacuated through rigid Schedule 40 PVC piping buried underground, extending 15 to 25 feet or more away from the foundation. The line terminates at an engineered pop-up emitter on a downward slope to prevent recycled water seepage.
Commercial Dual Sump Systems vs. Standard Consumer Pumps
Comparing commercial submersible systems to standard builder-grade alternatives demonstrates why cast iron and dual-pump redundancy provide superior protection:
| Performance Metric | Commercial Dual Cast-Iron (Recommended) | Hardware Store Plastic Pump | Pedestal Pump | Passive Gravity Line |
|---|---|---|---|---|
| Pump construction material | Heavy-duty cast iron and stainless steel; rapid heat dissipation for continuous run | Thin thermoplastic housing; prone to overheating, warping, and premature motor burnout | Exposed motor above basin; noisy, vulnerable to moisture damage, and prone to tipping | Passive pipe; requires open downhill slope that most residential lots lack |
| Power outage protection | Dedicated auxiliary DC backup pump with intelligent battery charger and alarm | Zero outage protection; completely inoperable the moment electrical grid drops | Standard AC power only; floods during intense thunderstorm electrical blackouts | Operates without power, but vulnerable to exterior pipe clogs and root blockage |
| Basin air quality seal | Airtight clear polycarbonate lid with silicone gasket blocks moisture and radon | Loose-fitting plastic lid or open pit allowing musty odors and pests into living space | Open basin required for vertical float rod; allows continuous moisture evaporation | Open exterior discharge that can allow rodents and insects into drainage pipes |
| Pumping capacity & head | Engineered high-flow capacity designed to evacuate thousands of gallons per hour | Low pumping capacity; easily overwhelmed during intense cloudburst storms | Moderate flow rate; struggles with high vertical lift to first-floor rim joist | Flow rate strictly limited by pipe slope and susceptible to exterior backwater surges |
| Operating noise level | Submerged motor and spring-loaded silent check valves ensure quiet operation | Loud humming motor and jarring water-hammer clunk on every pump shut-off | Very loud motor noise resonating throughout the basement and upper floors | Completely silent, but lacks mechanical lift needed for deep basements |
Our 8-Step Sump Pump Installation Protocol
Every sump pump installation follows strict mechanical and electrical standards to ensure seamless automatic operation and airtight basin containment:
Hydrological Siting & Structural Survey
Our waterproofing specialists evaluate basement water patterns, inspect existing French drain inlets, check electrical access, and select the lowest elevation point along the perimeter for optimal basin placement.
Precision Slab Core Excavation
Technicians neatly saw-cut and excavate a circular core through the concrete slab and subgrade earth, digging deep enough to house a commercial-capacity basin surrounded by a clean stone filter bed.
Polyethylene Sump Basin & Stone Bedding
A structural, heavy-duty polyethylene basin is set on a solid stone base. Perforations around the lower basin allow rising sub-slab water to enter without pulling fine silt into the pump intake.
Dual Cast-Iron Pump Assembly & Mechanical Plumbing
The primary cast-iron pump and auxiliary battery backup pump are plumbed with rigid PVC risers, independent float switches, and dual silent check valves, configured to fit cleanly inside the basin.
Smart Microprocessor Controller & Battery Wall Mount
The digital battery backup controller, audible diagnostic alarm, and heavy-duty deep-cycle battery are mounted securely on the basement wall above water level, connected to dedicated electrical circuits.
Airtight Inspection Lid & Radon Seal Installation
A clear polycarbonate cover with silicone rubber grommets around discharge pipes and electrical cords is bolted down, creating an airtight, child-safe, and odor-proof barrier.
Exterior PVC Discharge Trenching & Freeze Guard
Discharge piping penetrates the rim joist, connects to an exterior freeze-relief Ice Guard fitting, and runs underground via buried Schedule 40 PVC to an emitter positioned far from foundation walls.
High-Volume Flood Testing & Alarm Verification
Technicians fill the basin with water to test primary pump activation, simulate power loss to verify automatic battery backup takeover, check check-valve action, and calibrate system alarms.
Signs Your Sump Pump Needs Replacement
Do not wait for a major storm to discover that your existing pump has failed. Watch for these critical early warning signs:
Pump Makes Loud Screeching or Grinding Noises
Loud mechanical grinding or clanking sounds indicate worn internal motor bearings or a jammed impeller, signaling imminent motor failure before the next storm.
Continuous Running Without Shutting Off
A pump that runs non-stop even when water has been evacuated points to a stuck float switch, failing check valve, or an undersized motor unable to keep up with inflow.
Visible Rust, Corrosion, or Plastic Fatigue
Older builder-grade plastic pumps suffer thermal degradation, cracked housings, and rusted fasteners that compromise watertight motor seals and cause sudden electrical trips.
Musty Odors Coming from an Open Sump Pit
Uncovered or loose-lidded basins allow stagnant water, subterranean humidity, and soil gases to evaporate directly into basement air, elevating humidity throughout the home.
Water Rising Close to the Basin Rim During Storms
If the water level reaches the top of the pit before the pump engages, your current pump lacks the discharge volume needed to handle Middle Tennessee cloudburst storms.
No Battery Backup Protection During Blackouts
Relying solely on grid power leaves your home entirely vulnerable. Thunderstorms that knock out neighborhood power lines will cause unbacked sump basins to overflow rapidly.
Related Waterproofing & Structural Solutions
A high-capacity sump pump functions as the mechanical engine of your waterproofing system, working in tandem with comprehensive subfloor drainage:
Interior French Drains
Sub-slab perforated PVC piping and washed gravel trenches that capture cove joint seepage and direct it to the sump pit.
Basement Wall Repair
Carbon fiber straps and heavy-duty wall anchors to permanently stabilize masonry walls deflected by hydrostatic soil pressure.
Crawl Space Encapsulation
Heavy-duty 12 to 20-mil vapor barrier membranes, sealed vents, and commercial dehumidification for unconditioned subfloors.
Foundation Crack Repair
High-pressure structural epoxy and hydrophobic polyurethane injection to permanently seal leaking exterior foundation fractures.
Sump Pump Installation Across Middle Tennessee
We provide commercial sump pump installations, battery backup systems, and drainage services throughout all 12 counties in the Greater Nashville region:
Sump Pump Questions Answered
Clear engineering answers regarding pump horsepower, battery backup lifespans, freeze defense, and discharge plumbing in Middle Tennessee homes:
Why do I need a dual-pump system with a battery backup in Middle Tennessee?
In Middle Tennessee, severe thunderstorms and torrential rainstorms frequently bring high winds that knock down electrical power lines. When utility power cuts out, standard single sump pumps immediately stop working. Groundwater does not stop rising just because the power is out; in fact, soil saturation is highest during severe storms. A dual-pump system with a dedicated auxiliary DC battery backup pump guarantees that your basement remains protected, automatically pumping thousands of gallons even during extended municipal power blackouts.
What is the lifespan of a commercial cast-iron sump pump?
Commercial cast-iron submersible sump pumps typically deliver 7 to 10 years of reliable service under normal residential duty. Their heavy metal construction dissipates heat far more effectively than plastic pumps, preventing the motor windings from overheating during continuous storm cycling. By contrast, cheap plastic pumps often fail after only 2 to 4 years. We recommend routine annual inspections and replacing the backup battery every 3 to 5 years.
Why is an airtight, sealed sump basin cover important?
An unsealed or open sump pit behaves like an open bucket of water in your basement. It continually evaporates moisture into the air, raising indoor relative humidity, encouraging mold growth, and causing musty odors that migrate into upper living areas via the stack effect. Additionally, Middle Tennessee sits on porous karst limestone with elevated radon potential. Our bolted, clear polycarbonate lids with elastomeric gaskets create an airtight barrier that stops moisture, odors, and radon while allowing easy visual inspection.
How does the Ice Guard freeze-relief discharge fitting work?
During Tennessee winter freezes, buried discharge pipes can become blocked by ice dams or frozen ground. If water cannot escape, pressure builds up and the pump burns out, flooding the basement. The Ice Guard fitting is installed on the exterior wall just outside the home. If the buried line ever freezes or clogs, water automatically overflows through specialized relief louvers in the fitting, discharging safely onto the lawn until the underground line thaws.
Can a sump pump system handle water from both an interior French drain and a crawl space?
Yes. An engineered commercial sump pump basin has multiple pre-formed inlet hubs that accommodate drainage pipes from interior basement French drains, subfloor gravity channels, or crawl space perimeter drains simultaneously. Our team sizes the pump horsepower and basin volume to ensure the system easily manages combined inflow during peak rain events.
What maintenance does a sump pump system require?
Sump pump systems require very minimal routine maintenance. Every 6 to 12 months, homeowners should pour a bucket of water into the basin to confirm smooth float activation, listen for quiet check-valve operation, and glance at the battery backup indicator panel to verify charging status. Our technicians provide comprehensive annual tune-ups to test discharge flow rates, clear sediment, and verify battery health.
Schedule Your Free Sump Pump & Drainage Inspection
Never worry about basement flooding during severe Tennessee thunderstorms. Our waterproofing specialists provide thorough on-site pump evaluations, basin inspections, and customized battery backup solutions across Nashville and Middle Tennessee.
Serving Nashville, Franklin, Brentwood, Murfreesboro, Hendersonville, Mount Juliet, and all surrounding Middle Tennessee communities.
